Main Features
Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany
Mechanical synchronous meahanism and the complex compensation are designed so as to raise the workpieces precision.
The stroke and distance of the backgauge is adjusted by the motor and is well adjusted by hand,the adjustment is displayed by E21.
Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
Hydraulic Press Brake Controller : ESTUN E21 From China
Monochrome LCD Box Panel.
Integral factor programmable freely
Automatic positioning control
Spindle allowance offset
Internal time relay
Stock counter
Backgauge Accuracy 0.05mm
Hydraulic Press Brake Hydraulic System --BOSCH Rexroth from Germany
Hydraulic system is from Bosch -Rexroth,Germany.
Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

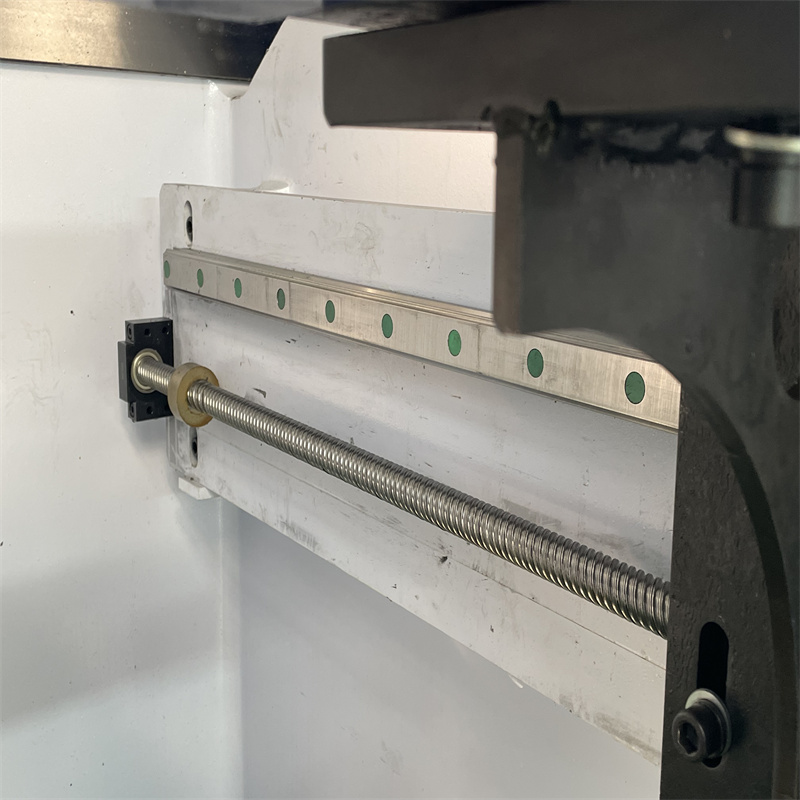

Hydarulic Press Brake Ball Screw Linear Guide Hiwin From TaiWan

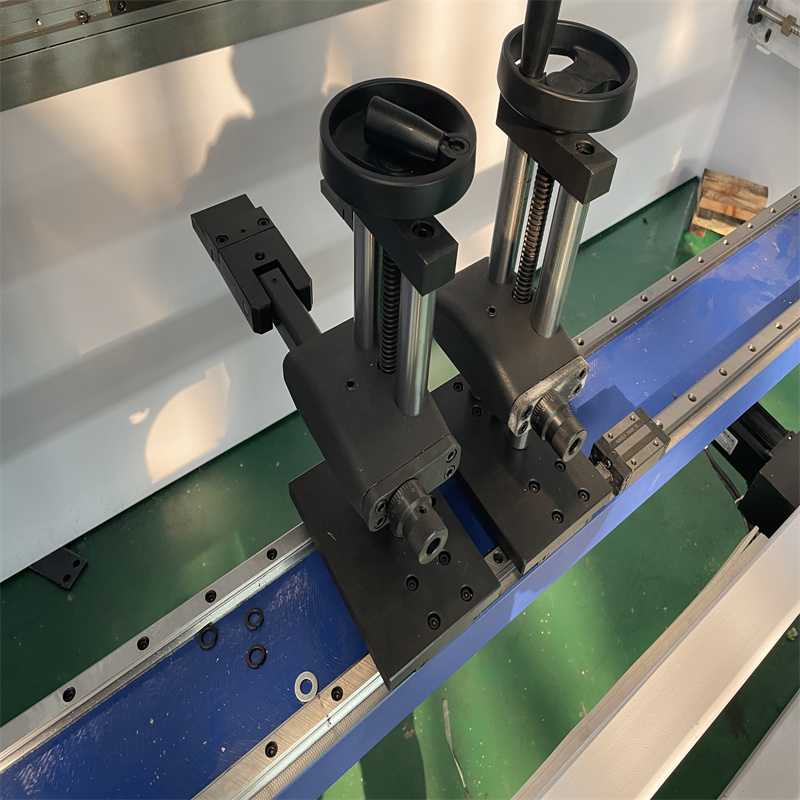

High Precision Backgauge is equipped with fine ball screw and guide linear
Backgauge adopts horizontal installation shell structure with high stability,singe shell double guide rail, high precision,X-axixs drive, automatioc CNC sytem
Hydraulic Press Brake Die
Up punching dies will be cut into section as the requirement as below:
25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation
Hydraulic Press Brake Safety Standard
EN 12622:2009 A1:2013
EN ISO 12100:2010
EN 60204-1:2006 A1:2009
Safety Grade:IP54 Grade
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection

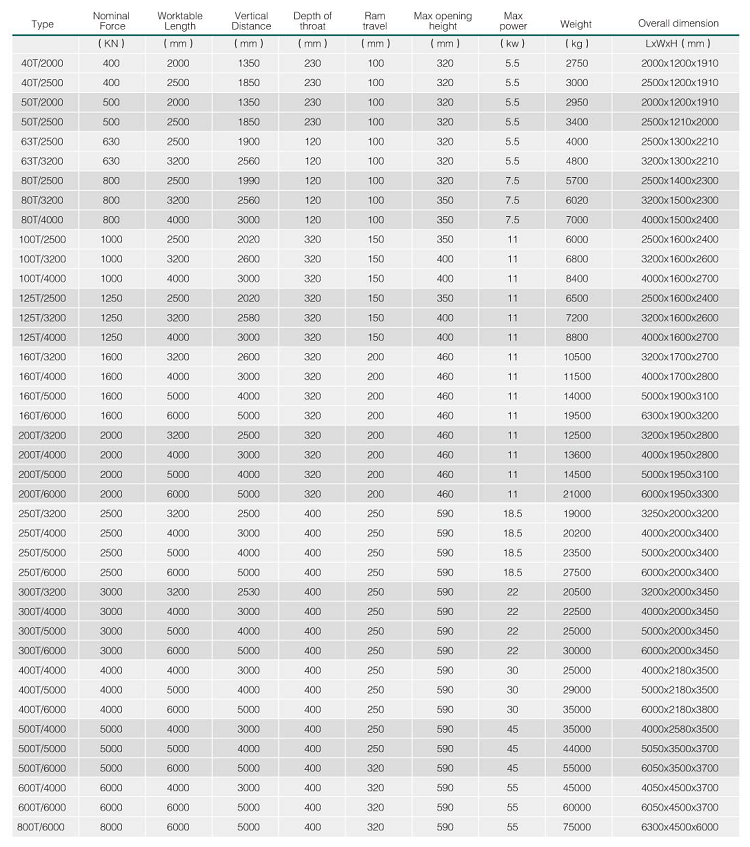

Technical Parametres
Press Brake Loading
We fixed our machine in container by steel wire and all of the machine is by plastic film;
For small equipment we use wooden package to protect it
We use 40HQ/OT or 20 GP to load protect
Why Choose US
Q1: How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length. Engineer will tell us the capacity directly
Q2: How about the machine warranty? Is the whole machine?
A: We canoffer 4 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free
Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:30-35 days.
Q5:What kind of Service does your company support?
A:Engineers Available to Service Machinery Overseas
Details
- Slider Stroke (mm): 150 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Torsion Bar
- Length of Working Table (mm): 3200
- Width of Working Table (mm): 150 mm
- Condition: New
- Place of Origin: Anhui, China
- Material / Metal Processed: Stainless Steel, ALLOY
- Automation: Automatic
- Extra Services: Hydraulic Press Brake
- Weight (KG): 8500
- Motor Power (kw): 7.5 kw
- Key Selling Points: Competitive Price
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
- Showroom Location: Egypt, United States, Philippines, Pakistan, Thailand, Chile, Romania, Kyrgyzstan, Malaysia
- Marketing Type: Hot Product 2019
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor
- After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
- Raw Material: Sheet / Plate Rolling
- Controller: Estun From China
- Main motor: Siemens from Germany
- Electrics: Schneider from France
- Tube: EMB From Germany
- Foot Switch: Karcon from South Korea
- Ball Screw: Hiwn From Taiwan
- Nominal Pressure (kN): 1250
- Certification: ce
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
