Brief Introduction
CNC laser cutting machine is a new type of laser cutting machine, the structure has high rigidity, good stability, high cutting efficiency and high machining precision.
The products are of high flexibility, safety, easy operation and low energy consumption. It belongs to environmental protection product, the processed plate size: 3000 * 1500mm; with the safety shield and the shuttle table. The overall layout is compact and reasonable.
Numerical control cutting machine is to drive the machine tool movement with digital program. When the machine tool moves, the random cutting tool is equipped to cut the object. This Mechatronics cutting machine is called NC cutting machine.
Laser cutting machine has the fastest efficiency, the highest cutting precision and generally small cutting thickness. The cutting speed of plasma cutting machine is also very fast, and the cutting surface has a certain slope. Flame cutting machine needle for thick carbon steel material.
Standard Inputs:
1) 2000W SPI Fiber Laser Resonator

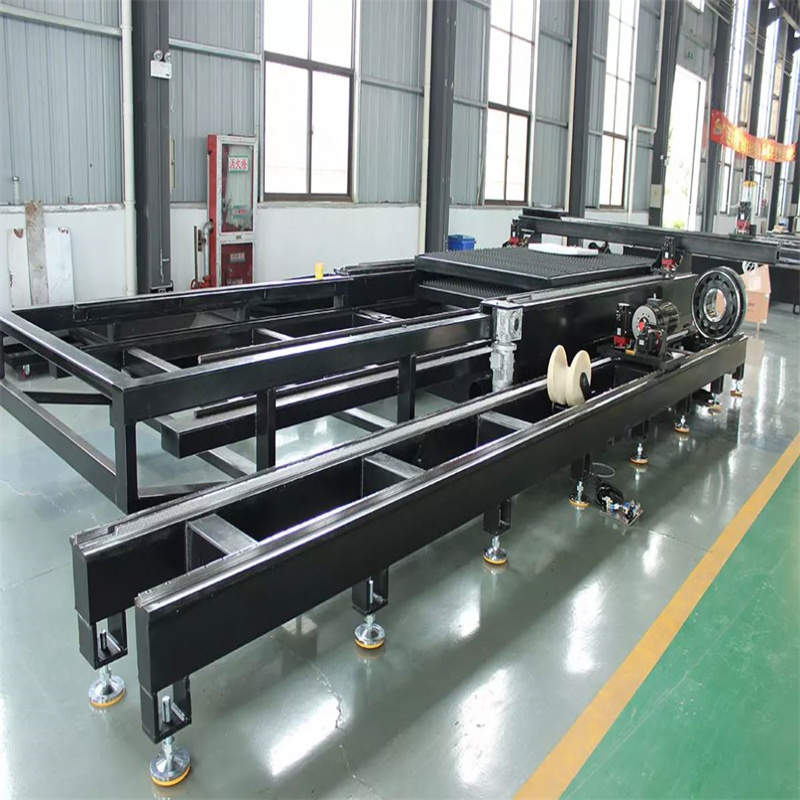

2) Fast shuttle worktable 3000*1500
3) Beckhoff CNC control system

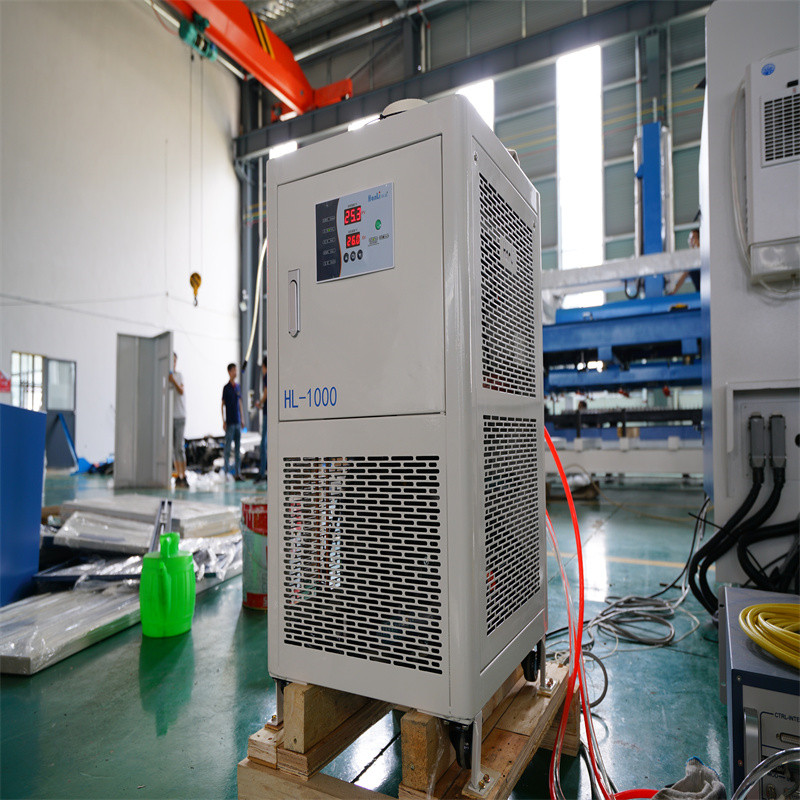

4) Water cooler for laser resonator
5) Cutting head especially for fiber laser
6) Capacitance type height sensor
7) Auto-program software especially for laser cutting
8) Dust collector
9) Gas precise filtering system
10) High pressure cutting pipeline
| Main Components: | ||
| Item | Qty. | Remark/Supplier |
| CNC System | 1 set | Beck Hoff |
| Drive | 1 set | LUST |
| Laser Generator | 1 set | SPI |
| Servo motor | 1 set | Delta, PHASE |
| X/Y axis precise gear | 1 set | GUDEL/ATLANTA |
| Z axis precise ball screw | 1 set | THK |
| X/Y/Z axis precise ball linear guide | 1 set | THK |
| Pneumatic components | 1 set | GENTEC |
| Motor for shuttle table | 1 set | SEW |
| Cutting Head | 1 set | PRECITEC |
| Auto-program Software | 1 set | CNCKAD |
| Electrical components | 1 set | Schneider |
Specifcation
| Item | Specification | Unit | ||
| 2 | Stroke of X Axis | 3000 | mm | |
| 3 | Stroke of Y Axis | 1500 | mm | |
| 4 | Stroke of Z Axis | 280 | mm | |
| 5 | Max. Feeding Speed | 140 | m/min | |
| 6 | Cutting Accuracy | ±0.1 | mm/m | |
| 7 | Rated Laser Power | 2000 | W | |
| 8 | Cutting Thickness (when the required cutting condition is met) | Carbon Steel | 0.5-16 | mm |
| Stainless Steel | 0.5-10 | mm | ||
| Aluminum | 0.5-6 | mm | ||
| 9 | Stable Cutting Thickness | Carbon Steel | 12 | Mm |
| Stainless Steel | 5 | Mm | ||
| Aluminum | 5 | Mm | ||
| 10 | Input Power | 38 | kVA | |
| 11 | Shuttle table exchange time | 10 | S | |
| 12 | Machine Weight | 8 | t | |
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 3-4weeks after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What kind of package do you offer?
A. Normally in plywood case, to make sure all goods in good condition.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service.
Details
- Application: LASER CUTTING
- Applicable Material: MDF, Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 3000*1500
- Cutting Speed: 140\tm/min
- Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Cutting Thickness: 0.5-16mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: DSP
- Laser Source Brand: SPI
- Laser Head Brand: Precitec
- Servo Motor Brand: DELTA
- Guiderail Brand: THK
- Control System Brand: Beckhoff
- Weight (KG): 8000 KG
- Key Selling Points: Flexible Manufacturing
- Optical Lens Brand: Wavelength
- Warranty: 1 Year
- Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Gearbox, PLC
- Stroke of X Axis: 3000mm
- Stroke of Y Axis: 1500mm
- Stroke of Z Axis: 280mm
- Max. Feeding Speed: 140m/min
- Cutting Accuracy: ±0.1mm/m
- Rated Laser Power: 2000w
- Input Power: 38KVA
- Shuttle table exchange time: 10S
- Laser Power Stability: <1%
- Package: Wooden case
