Main Features:

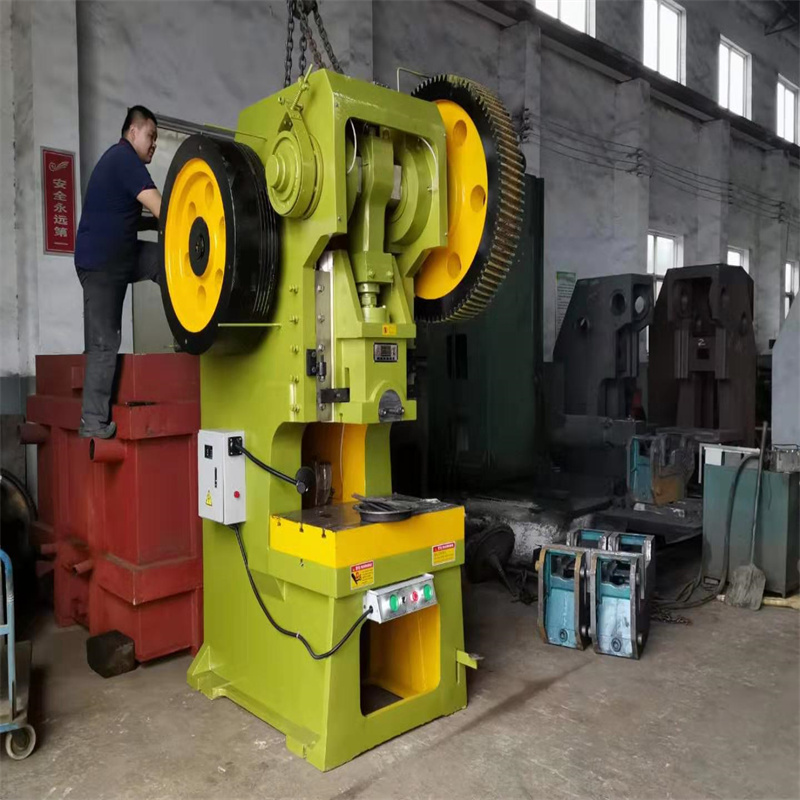

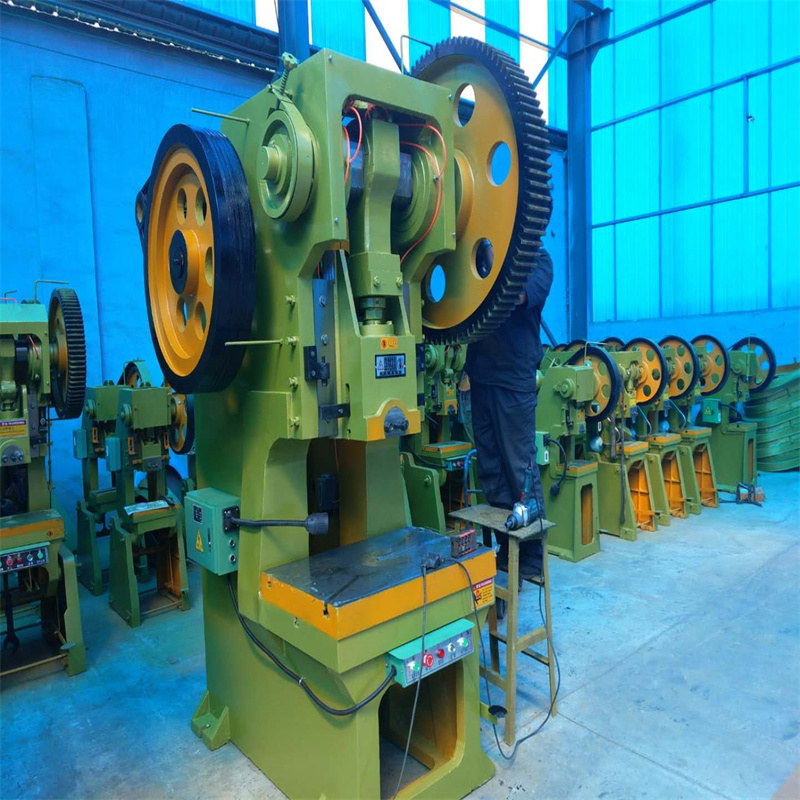

1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

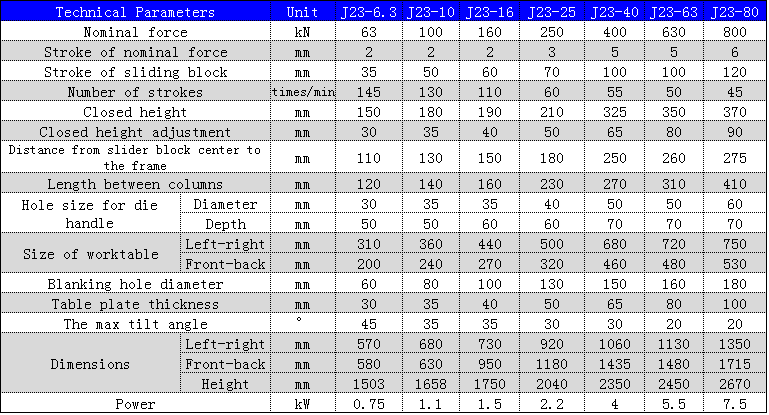

Technical data
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Reply within 1 hour. Offer with machine details will send out within one working day.
* Sample testing support.
* View our Factory.
* OEM & ODM support
On-sales Service
* Production situation report.
* Vessel booking service.
* Documents support.
* Machine checking support
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours hotline .Online installation and operation instruction.
* Life long machines Consultant
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer; We specialize in metal sheet metal steel processing equipment.
Q: How to choose a bending machine?
A: Please tell us the following information in detail:
- Material of plate:
-Max thickness:
-Max plate width:
-If possible: you can specify the model;
Q: Where is your factory? How can I get there?
A: You can fly to NanJing LuKou airport directly, we will pick you up in the airport. All our customers, both inland and abroad, Warmly welcome to visit us!
Q: How do you ensure quality in the factory?
A: Quality culture.:We always attach great importance to quality control from the beginning to the end. Our factory has obtained ISO, CE certification.
Q: How can I pay?
A: You can pay by T/T, Western Union, MoneyGram, Paypal; 30% deposit; pay off the 70% balance before shipment.
Details
- CNC or Not: Normal
- Condition: New
- Machine Type: Punching Machine
- Power Source: Mechanical, Mechanical power
- Place of Origin: Anhui, China
- Dimension(L*W*H): 570*580*1503mm
- Model Number: J23-10
- Weight (T): 3.5
- Key Selling Points: Multifunctional
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Showroom Location: Egypt, United Kingdom, Viet Nam, Mexico, Thailand, Sri Lanka, Malaysia
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 24 months
- Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure vessel, Engine
- Name: power press
- Machine parameter: can be customized
- Auto mode: Normal
- Certification: CE ISO
- Product name: 10 ton power press
- Keyword: punching machine
- Machine Function: punching cutting shape forming
- Usage: plate pipe hole punching
- with feeder: can be used together cnc feeder
