Products Description
| Model | Max. rolling thickness | Shearing angle | times of stroke | Range of back gauge | Size |
| QC12Y4X3200 | 4X3200 | 1°30' | 18 | 20~600 | 3840X1675X1600 |
| QC12Y6X2500 | 6X2500 | 1°30' | 18 | 20~600 | 3130X1530X1600 |
| QC12Y6X3200 | 6X2500 | 1°30' | 14 | 20~600 | 3840X1675X1620 |
| QC12Y6X6000 | 6X6000 | 1°30' | 10 | 20~800 | 6700X2300X2300 |
| QC12Y8X3200 | 8X3200 | 1°30' | 10 | 20~600 | 3840X1675X1620 |
| QC12Y12X2500 | 12X2500 | 1°30' | 16 | 20~800 | 3234X2045X1935 |
FAQ
Q: How to get a accurate quotation from us?
A: provide us the detail of the material such as metal thickness and width
Q: what’s the shipping cost from China to your country?
A: We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: Payment terms, MOQ, warranty, FOB...
A: payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity: 1 set, FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time, if urgently, please call us.
Q: what’s the package?
A: fumigation-free plywood case or without package
Q: How to operate this machine ?
A: video link of our factory .......or we send you the movie directly
Q: what about commissioning service ?
A: we can offer commissioning service,the buyer need to afford plane tickets
Q: Do you offer teaching & training ?
A: Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A: Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free. post-tension corrugated duct tube making machine for bride
Details
- Max. Cutting Width (mm): 3200
- Max. Cutting Thickness (mm): 4 mm
- Automatic Level: Hydraulic
- Shearing Angle: 1°30'
- Blade Length (mm): 2600 mm
- Backgauge Travel (mm): 20 - 600 mm
- Throat Depth (mm): 220 mm
- Condition: New
- Power (kW): 5.5 kW
- Weight (KG): 5500 KG
- Place of Origin: Shanghai, China
- Voltage: 380V
- Dimension(L*W*H): 3840*1675*1600
- Year: 2019
- Warranty: 1 Year
- Key Selling Points: Competitive Price
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works , Advertising Company
- Showroom Location: None
- Marketing Type: Ordinary Product
- Machinery Test Report: Not Available
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
- Type: Shearing Machines
- brand name: RAYMAX

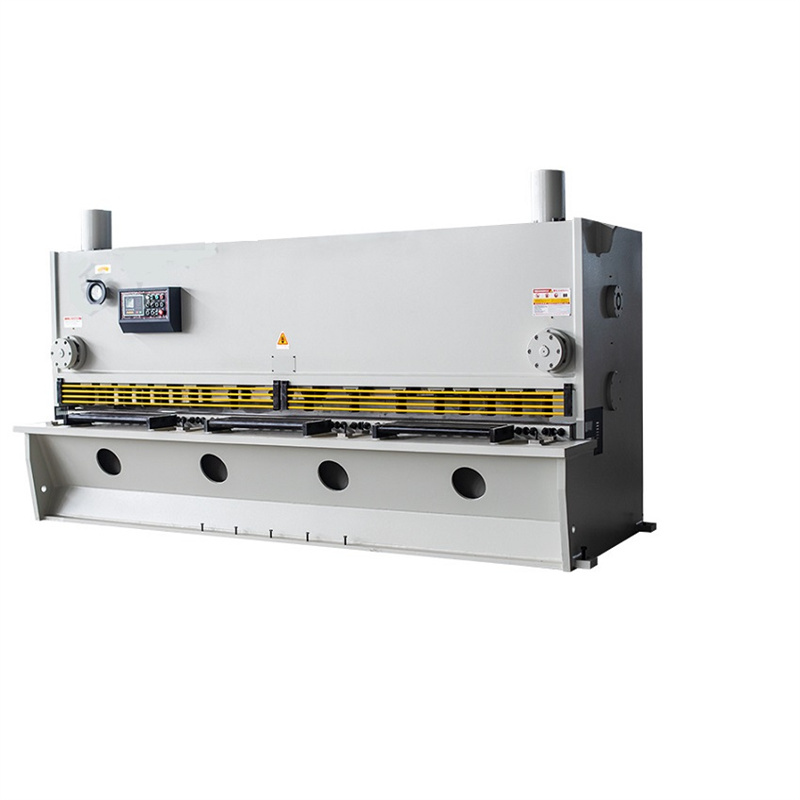

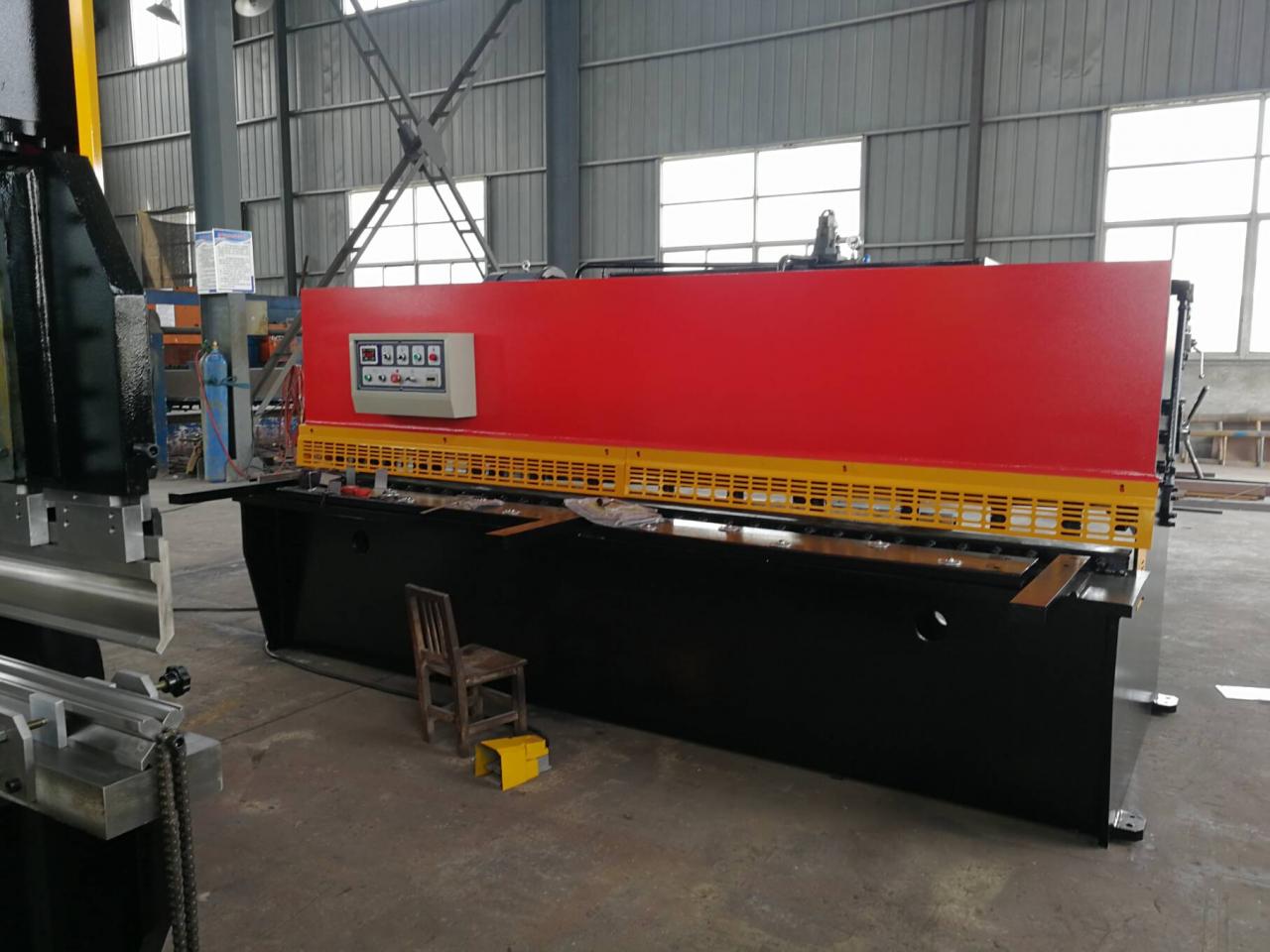

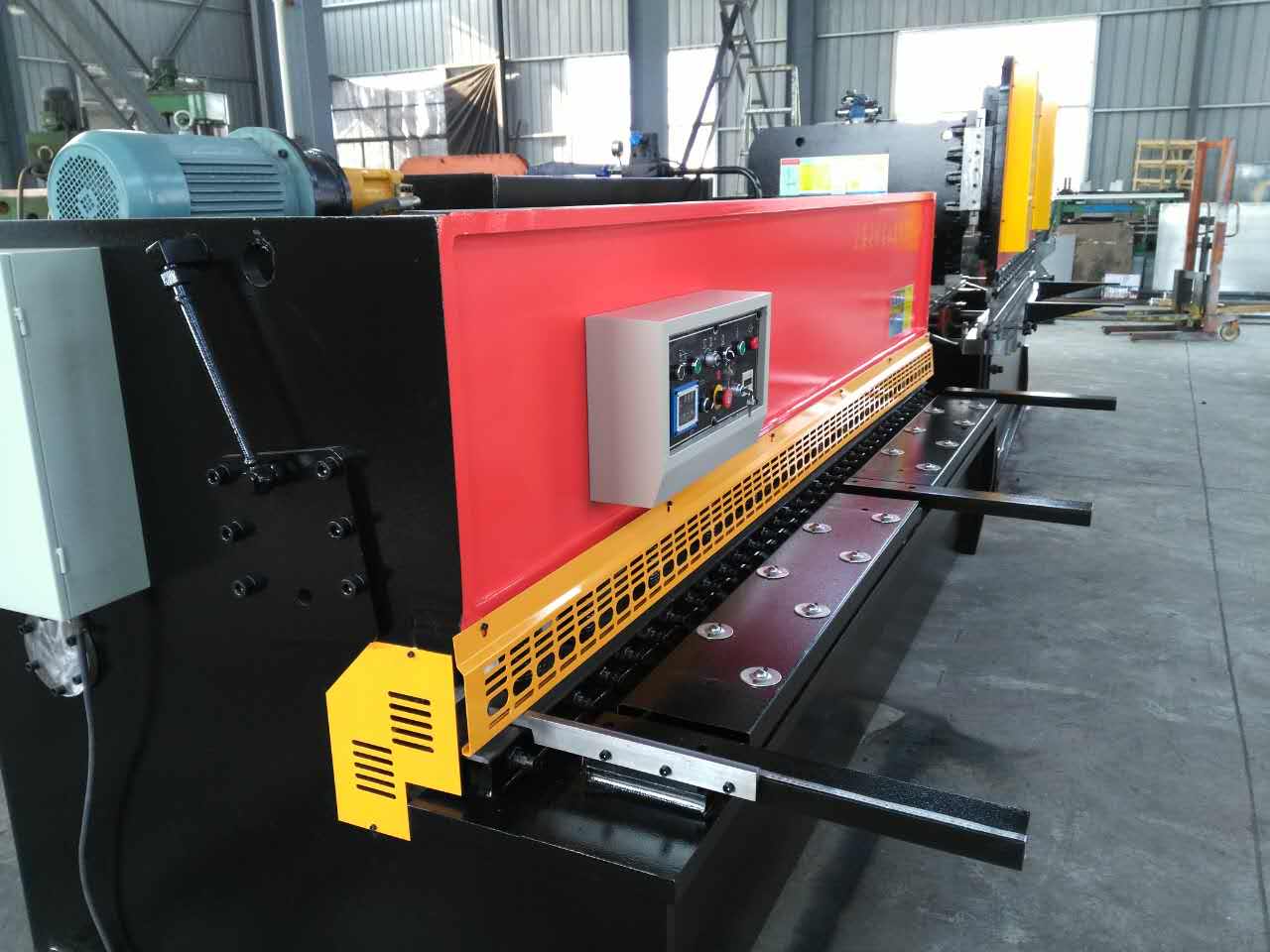

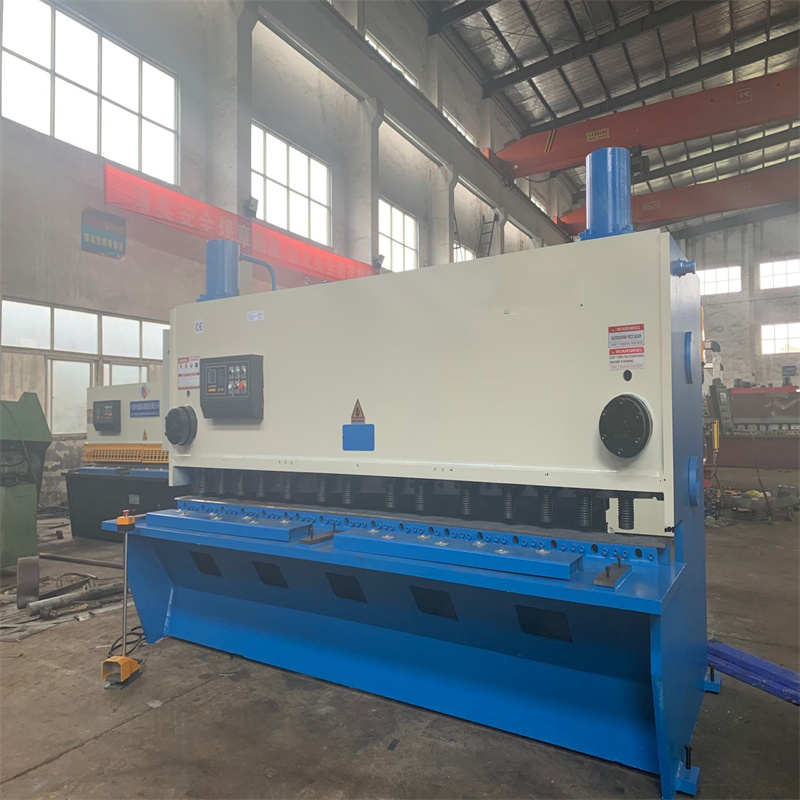

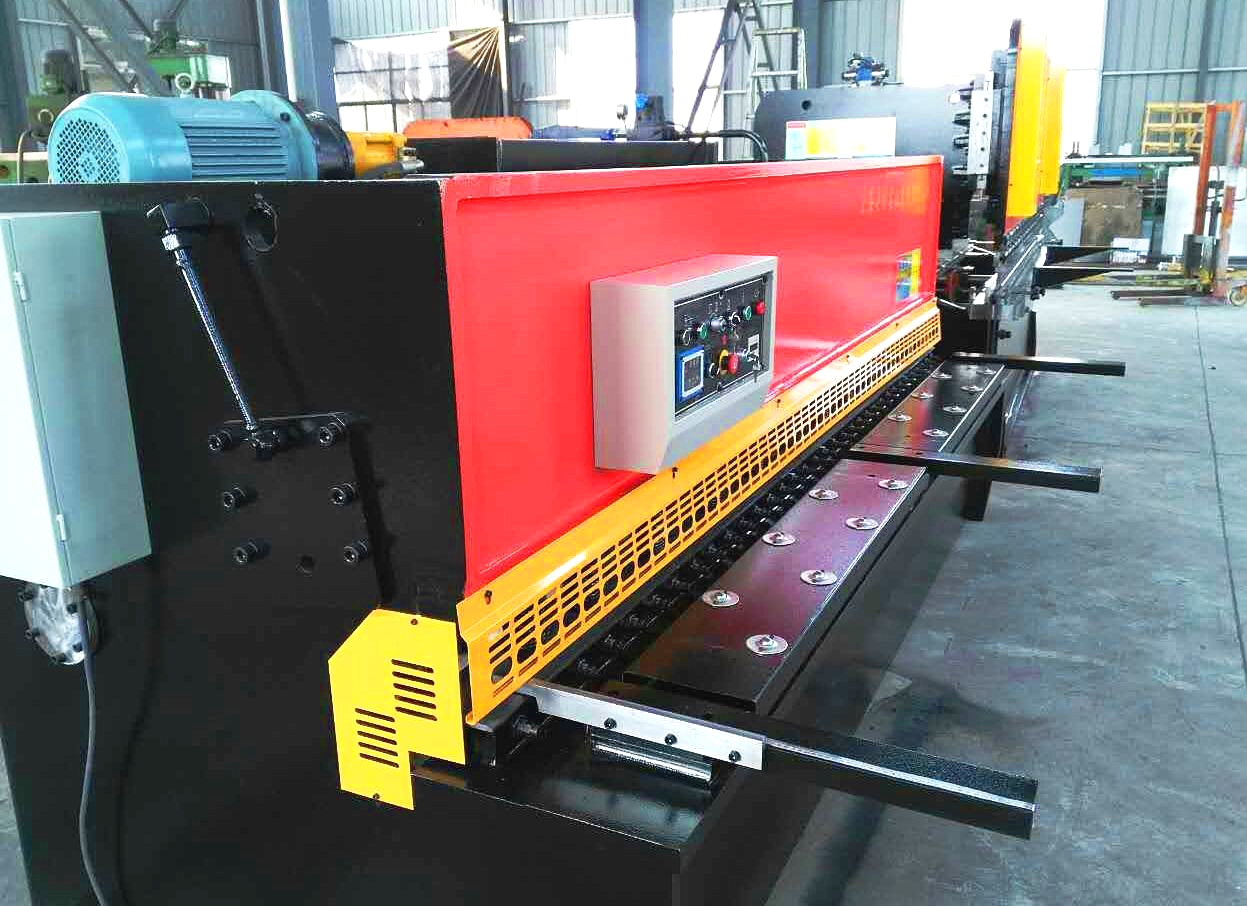

- product name: Hydraulic swing beam guillotine shears QC12Y-4X2500
- color: red
- place of origin: Shanghai
- Moq: 1 set
- payment terms: L/C T/T
- cutting size: 4mm x2500mm
- cutting angle: 1°30'
- Range of back guage: 20-450mm
- After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service
- After Warranty Service: Video technical support, Online support, Spare parts
