Guillotine hydraulic shearing machine price sheet metal QC11Y-12X4000 Product Overview QC11Y Series Hydraulic Swing Beam Shear, the maximum thickness of cutting mild steel is 30mm, the maximum length is 6000mm. Steel plate welded structure, hydraulic transmission and accumulator return strock; Characterized by easy operation, reliable performance and fine appearance;
With E21S simple CNC controller,E21S can control the movement of backgauge, achieving efficient and highly precise positioning; The blades with high tensile strength,can cut mild steel and stainless steel
Configuration with details :
1. E21S simple CNC controller for hydraulic shearing machine.
2. Domestic high quality hydraulic valve,no oil leakage and fault,it can show the oil pressure in time,and it use full-metal
high-pressure tube connection,ensure the quality.
3. Top brand main motor,with strong power.
4. Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Using high quality holding-down clamps.
5. Indicator-based adjustment of blades clearance is easy,convenient and swift.
6. Emergency stop button on the back of the shear machine,to protect the personnel safety.
7. Domestic high quality bearing,wearproof and long operation life.
8. Penetration guard fence around the shear,not only protect the safety of operator but also observe the shearing position.
9. Taiwan high quality SHIHLIN frequency inverter,lower frequency and more energy-efficient,with quick positioning.
10. Shanghai good quality blades,with long lifespan.
11. Bite type tube fittings is used to avoid disadvantages of uneasy maintenance etc that caused by welding.
Features :
1. The second generation of shear.
2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3. Advanced integrated hydraulic system with and excellent reliabitity quality.
4. Rapidly,accurately and conveniently adjusting the blade clearance by motor
5. The adjustable rake angle can minimize plate deformation.
6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of
products can be also guaranteed.
7. Shearing in sections,shadow-line cutting.
8. Counter for the motorized back gauge.
9. Back support device (optional). Hydraulic Guillotine Shearing Machine, Steel Plate Cutting Machine

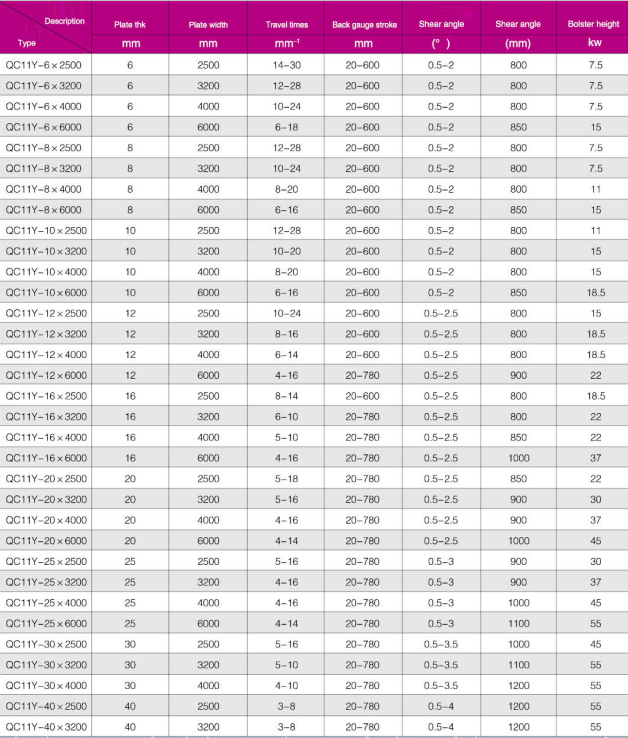

PRODUCT SPECIFICATIONS
Details
- Max. Cutting Width (mm): 6000, 6000
- Max. Cutting Thickness (mm): 40 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 0.5-3
- Blade Length (mm): 6000 mm
- Backgauge Travel (mm): 20 - 1000 mm
- Throat Depth (mm): 100 mm
- Condition: New
- Brand Name: KNOPPO
- Power (kW): 22 kW
- Weight (KG): 35000 KG, 2000
- Place of Origin: China
- Voltage: any design, 380V 220V Optional
- Dimension(L*W*H): 7250x2400x3100mm, 3880*2150*2000mm
- Year: 2020
- Warranty: 3 years
- Key Selling Points: Automatic
- Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
- Showroom Location: United Kingdom, Germany
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Motor
- After-sales Service Provided: Service Machinery Overseas
- Cutting material: Metal Stainless Steel Carbon Steel
- Certification: CE
- Rated Power: 4KW
- Color: Customer Choose
- Product name: Guillotine hydraulic shearing machine price sheet metal QC11Y-12X4000
