Electro-hydraulic press brake
RAYMAX press brake features an CNC crowning system for improved quality, a servo driven back gauge system for
increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increasedworking speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.
Product Specifications
| Type | 63T/2500 | 80T/3200 | 100T/3200 | 160T/3200 | 200T/3200 | 250T/3200 | 300T/3200 |
| Nominal Force (KN) | 630 | 800 | 1000 | 1600 | 2000 | 2500 | 3000 |
| Bending Length (mm) | 2500 | 3200 | 3200 | 3200 | 3200 | 2700 | 3200 |
| Vertical Distance (mm) | 1900 | 2700 | 2700 | 2700 | 2700 | 2700 | 2700 |
| Depth of Throat (mm) | 350 | 350 | 400 | 400 | 400 | 400 | 400 |
| Slider Travel (mm) | 170 | 170 | 200 | 200 | 200 | 200 | 200 |
| Max.Opening (mm) | 380 | 380 | 420 | 420 | 420 | 420 | 420 |
| Main Power (Kw) | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 | 22 |
| Crowing Cylinders | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Control Axes | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
| X Axis Travel(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| X Axis Speed (mm/s) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Overal Dimension (LxWxH)(mm) | 3100x1450x2050 | 3500x1550x2100 | 3500x1580x2400 | 3500x1650 x2500 | 3500x1680 x2550 | 3500x1700 x2600 | 3500x1800 x2730 |
| Weight(Ton) | 5.8 | 7.8 | 8.5 | 11 | 14.2 | 15.6 | 16.8 |
Product Configuration
DA-53T control system
*"Hot-key”touch navigation
*10.1" high resolution colour TFT
*Up to 4 axes (Y1,Y2 + 2 aux. axes)
*Crowning control
*Tool / material / product library
*Servo and frequency inverter control
*Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
*TandemLink (option)
*USB memory stick interfacing
*Profile-T offline software
Fast Clampings
*Standard double-V lower dies with different size and various shaped slots for choice, convenient for exchanging dies, capable for bending regular plates, with high cost performance-ratio CNC double-V die workbench, convenient for installation of segmented dies .
Taiwan HIWIN Ball Screw And Linear Guide Rail
*Equipped with Taiwan HIWIN ball screw and linear guide rail, backgauge adopts horizontal installation shell structure with high stability, single shell double guide rail, high precision, X axis drive, automatic CNC system

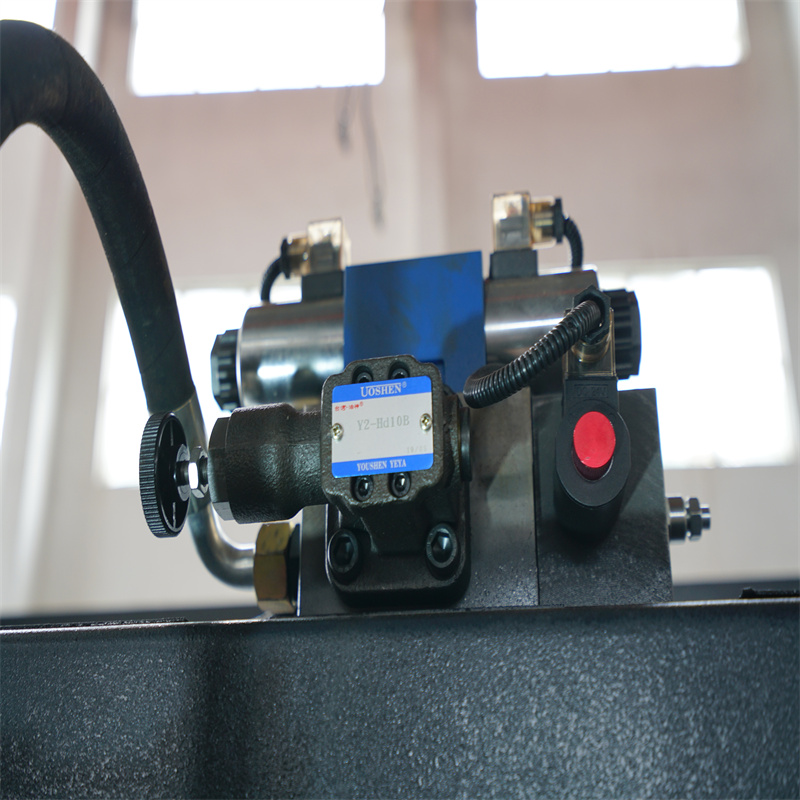

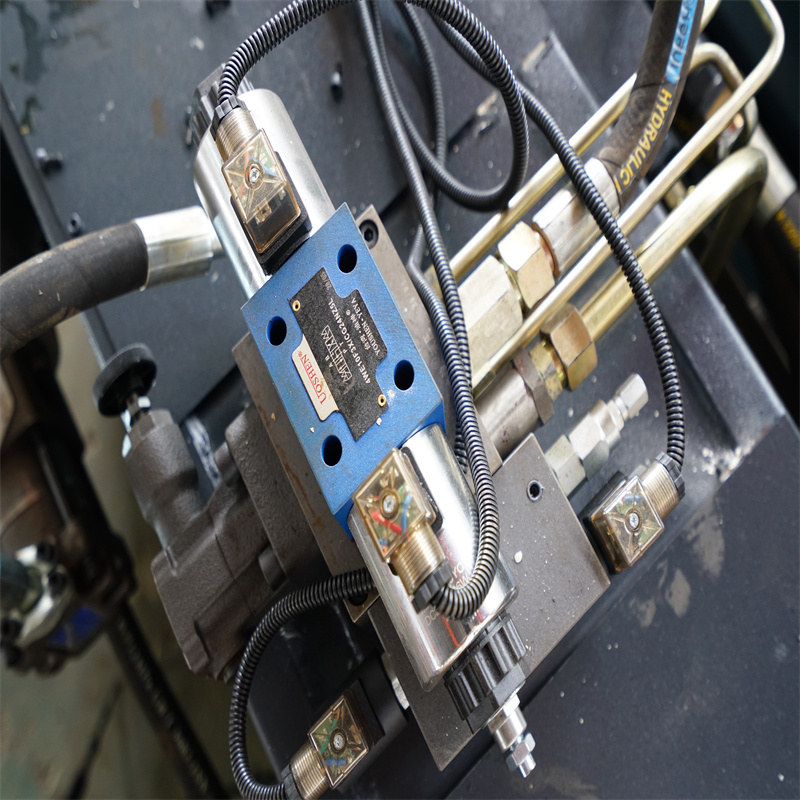

World famous Hydraulic value set
Adopt the best quality Germany BOSCH REXROTH cylinder valve to ensure high performance and high reliability,no ol leakage and fault.
V- -axis Mechanical Crowing
V-axis mechanical crowing, improving the accuracy of bending angle and linearity
Siemens motor
Guarantees the machine service life ,and reduce the noise when working
Foot Switch
*It is movable and can stop the operation anytime you want by emergency button. Enchancing the service life and optional sensitiviy. It is more reliable.
Manual back gauge finger
*2 to 5 back gauge fingers (standard 3)
0il pump
*American world famous brand for hydraulic pump. It performs well and provides great power for the whole system. Using Sunny pump ensures the pump service life and lower working noise.
42CrMo Toolings
*The dies are made by 42CrMo steel ,hardness after heat treatment up to 42 degrees,ensuring the die service life
Spain FAGOR Grating ruler
*Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler, then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controling the slider (Y1 ,Y2)running on the same frequency, maintaining the parallel state of the worktable.
Powerful Cabinet
*French schneider electrics to ensure machine stability, and Estun servo drive to control the accuracy of X, Y axes .
*Open Door
*Power Off
Details
- Slider Stroke (mm): 120 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 3200
- Width of Working Table (mm): 3200 mm
- Dimension: 3500x1700x2200mm
- Condition: New
- Place of Origin: China
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
- Automation: Automatic
- Extra Services: Cut To Length
- Year: 2021
- Weight (KG): 2800
- Motor Power (kw): 13.5 kw
- Key Selling Points: Automatic
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
- Showroom Location: None
- Marketing Type: New Product 2021
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Bearing, Motor, Pump, PLC, Engine
- CNC Control system: DA53T
- Function: Sheet metal bending
- Power: 13kw
- Product name: press brake
