China Metal Aluminium Fin Sheet Punching Machine For Copper Cutting 8mm Hole Punch

Products Description

Mechanical C-Frame Power Press J23 Series

J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.

1. Stable: reasonable and scientific mechanical design, stable structure to reduce wear
2. Economical and practical: long service life and high efficiency, high accuracy
3. Simple operation: high degree of automation

The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.

1. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

2. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations,and properly balanced for smooth running.

3. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

4. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

Optional Device:

Ram adjustment and Structure:

1. The Table and RAM body cast iron structure, the whole body is tempered, use thesecondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance

2. Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overloadprotection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

3. Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment

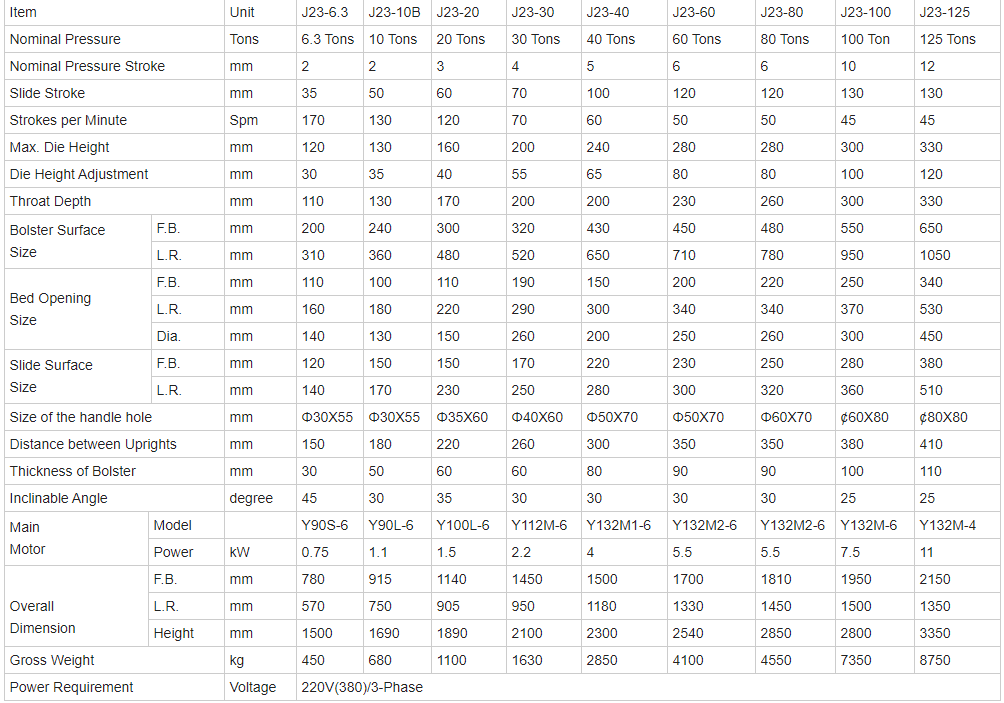

Technical Specification

FAQ

Q1: How long is the delivery period?

A1: Generally speaking, it is seven days. If the transaction volume or tasks are tight, it may take 15 days.

Q2: How does your factory do regarding quality control?

A2: Quality is the priority. We always attach great importance to quality controlling from beginning to the end.

Details

• CNC or Not: Normal, Normal
• Condition: New, New
• Machine Type: Punching Machine
• Slide Stroke (mm): 50
• Power Source: Mechanical, Mechanical
• Place of Origin: Anhui, China
• Voltage: 220/240/380/400
• Dimension(L*W*H): 1450x950x2100mm
• Weight (T): 1
• Key Selling Points: Sustainable
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company
• Showroom Location: Italy, Brazil, India
• Marketing Type: New Product 2019
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Bearing, Gearbox
• Weight: 600kgs
• Certification: CE ISO
• After-sales Service Provided: Engineers available to service machinery overseas
• Capacity: 6.3-160Ton
• Punching machine: Mechanical
• Weight (KG): 600
• Power: 2.2kw
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
• Local Service Location: Turkey, France, Peru
• Nominal Force (kN): 100
