Product Description

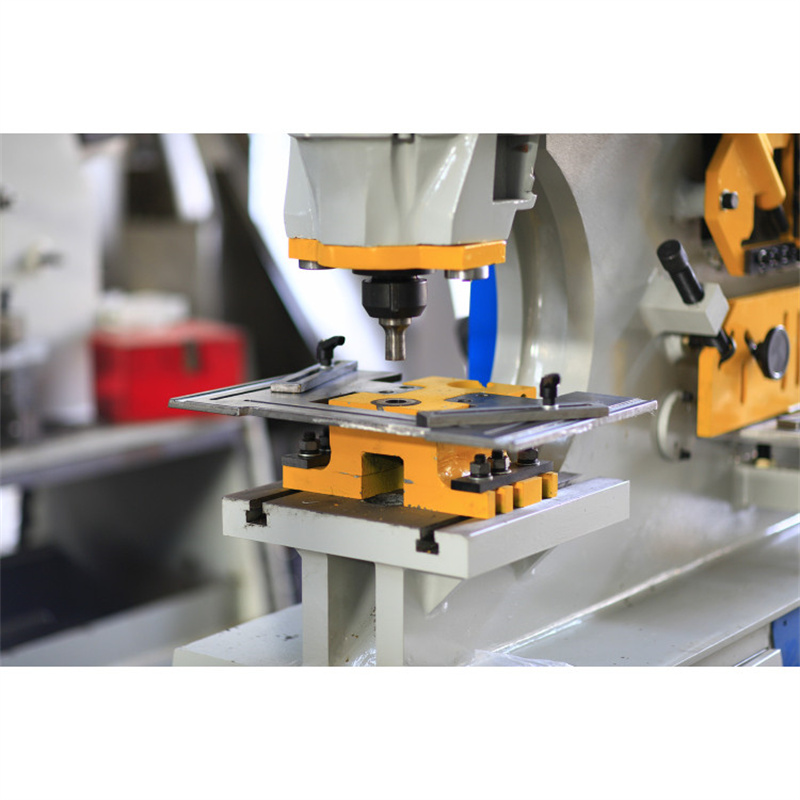

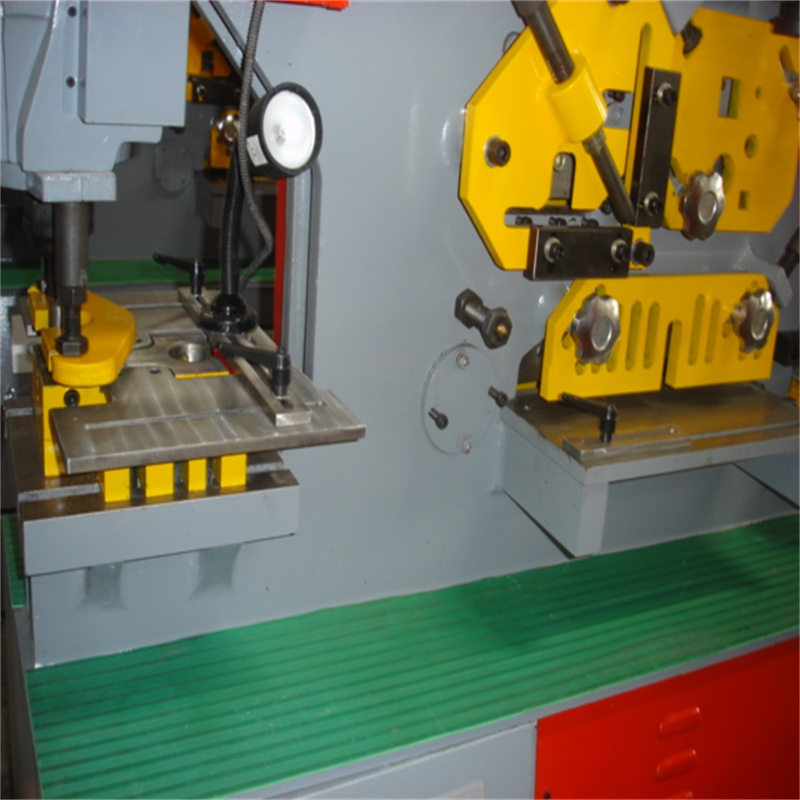

RAYMAX's Q35Y series industrial-grade hydraulic ironworker features multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
Technical Parameters
| Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
| Pressure(T) | 65 | 90 | 120 | 160 | 200 | 250 |
| Max.cutting thickness(mm) | 16 | 20 | 25 | 30 | 40 | 50 |
| Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| One stroke shears size(T*W)(mm) | 16*2508*400 | 20*33010*480 | 25*33016*600 | 30*33020*600 | 35*40025*700 | 40*40030*750 |
| Slider stroke(mm) | 80 | 80 | 80 | 80 | 80 | 80 |
| Stroke frequency(times/min) | 12 | 12 | 10 | 10 | 10 | 10 |
| Throat depth(mm) | 300 | 355 | 400 | 600 | 600 | 600 |
| Punching depth(mm) | 16 | 20 | 25 | 26 | 35 | 40 |
| Max.punching dia.(mm) | 25 | 30 | 35 | 38 | 40 | 40 |
| Main motor power(KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
| Dimensions(L*W*H)(mm) | 1640*730*1770 | 1860*800*1990 | 2355*960*2090 | 2680*1040*2300 | 2970*1240*2350 | 3000*1440*2450 |
FAQ
Q1. Are you a factory or a trading company?
A: RAYMAX is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipments. We have more than 15 years of manufacturing experience, and our products were exported to more than 80 countries and regions.
Q2. Where are you located? How do I get there?
A: RAYMAX is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai. You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up. Welcome to visit RAYMAX .
Q3. What if we don't know how to operate your machine?
A: Detailed installation and operation instructions are attached to the machine. You could operate the machine according to it. Besides, video technical support and online support are provided. Or we can arrange our engineer to your country to teach you how to use it and maintain it. You can also send your technician to our factory. We will give him/her related training.
Q4. How do you guarantee your quality?
A: With more than 15 years of manufacturing experience, our products are superior to the domestic standard and meet the European standard. We have advanced processing equipment and testing instruments, which makes us at the leading level in the same industry in China. Our products are sold well in China and other more than 80 countries and regions, and got a good reputation. We warmly invite you to visit our factory!
Details
- CNC or Not: CNC
- Condition: New
- Nominal Force (kN): 650
- Power Source: Hydraulic
- Year: 2022
- Voltage: 220V/380V/customized
- Dimension(L*W*H): 2680*1040*2300
- Motor Power (kW): 11
- Weight (T): 3.8
- Key Selling Points: Multifunctional
- Warranty: 2 years
- Showroom Location: Italy, France, Germany, India, Russia
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining, Restaurant, Farms, Home Use, Food & Beverage Shops, Garment Shops, Advertising Company, Food Shop, Building Material Shops, Printing Shops, Hotels, Food & Beverage Factory
- Machine Type: Hydraulic Ironworker
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 YEARS
- Core Components: Motor
- Keyword: multifunction
- Application: Metal Sheet Stamping
- Name: Hydraulic Punch shear Machine
- Color: Customized
- Function: Steel Metal Punching
- After-sales Service Provided: Online support, Video technical support
- After Warranty Service: Video technical support, Online support
- Local Service Location: Italy, France, Germany, India, Russia
- Certification: CE,ISO
