| Fiber laser cutting machine | CO2 cutting machine | |||
| Energy efficiency: between 25%-30% | Energy efficiency: between 8%-10% | |||
| Hardly any maintenance | Regular maintenance: CO2 gas, reflector, resonant cavity, turbine | |||
| 1KW machine cutting 10mm steel plate | 2KW machine cutting 10mm steel plate | |||
| Simple structure, not easy to damage | Complex structure, many wearing parts | |||
| Cutting Area: 3000x1500mm | Cutting Area:1300*900mm | |||
| Cutting Speed:0-120m/min | Cutting Speed:0-60mm/min | |||
RAYMAX
The overall function has no redundant design, simple and practical, easy to modify and upgrade, Square machine design, no unnecessary protrusions, suitable for transportation and placement, saving space, Blue and white painting is suitable for most factory decoration styles, suitable for DIY Simple shape, simple structure, easy to install and maintain, Very cost-effective
OTHER
Complex lighting increases design costs and maintenance costs, Special-shaped non-integrated chassis design increases cost and is easy to damage, Multi-color painting is not suitable for most factory environments, making DIY appearance more difficult, Complex appearance decoration, not easy to install, disassemble and maintain
Machine Parameters
| Model | MK-3015S | ||
| Power Output | 1000W/1500W/2000W/3000W/4000W/6000W/12000W | ||
| Cutting Range | 1510*3050mm/2030*4050mm | ||
| Laser Wavelength | 1064NM | ||
| Laser Source | Raycus/MAX/IPG | ||
| Laser Cutting Head | Raytool | ||
| Max Accleration | 1.5G | ||
| Gross weight | 3500kg | ||
| Machine Warranty | 3 years | ||
| X.Y axis location accuracy | ±0.01mm | ||
| X.Y axis repeat location accuracy | ±0.01mm | ||
| X.Y axis max moving speed | 120m/min |
01 Brand Laser
IPG/Raycus/MAX All major brands of lasers are customized at will, and the pursuit of cost-effectiveness; 10w hours of stable use
02 High-strength bed
High-strength sheet welding machine bed; 600°C high temperature annealing for stress relief; No deformation after long time and high frequency use
03 Automatic focusing laser
Automatically adjust focus according to material thickness.Multiple focal lengths, high-speed and accurate time saving
04 Humanized operating system
Baichu 1000s/CYPONE/CYPCUT/ Weihong; Humanized customization to meet various needs
05 Design the best combination
Fuji/Yaskawa Electric EREFAT/modoli reducer water cooling Switezerland Raytools /Germany Precitec

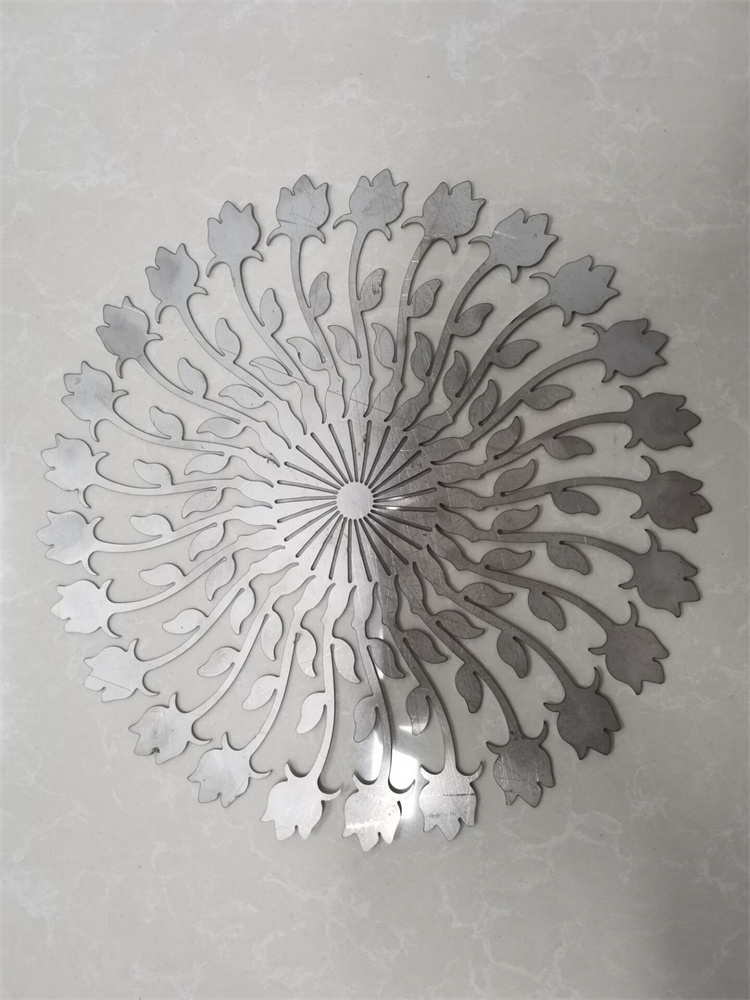

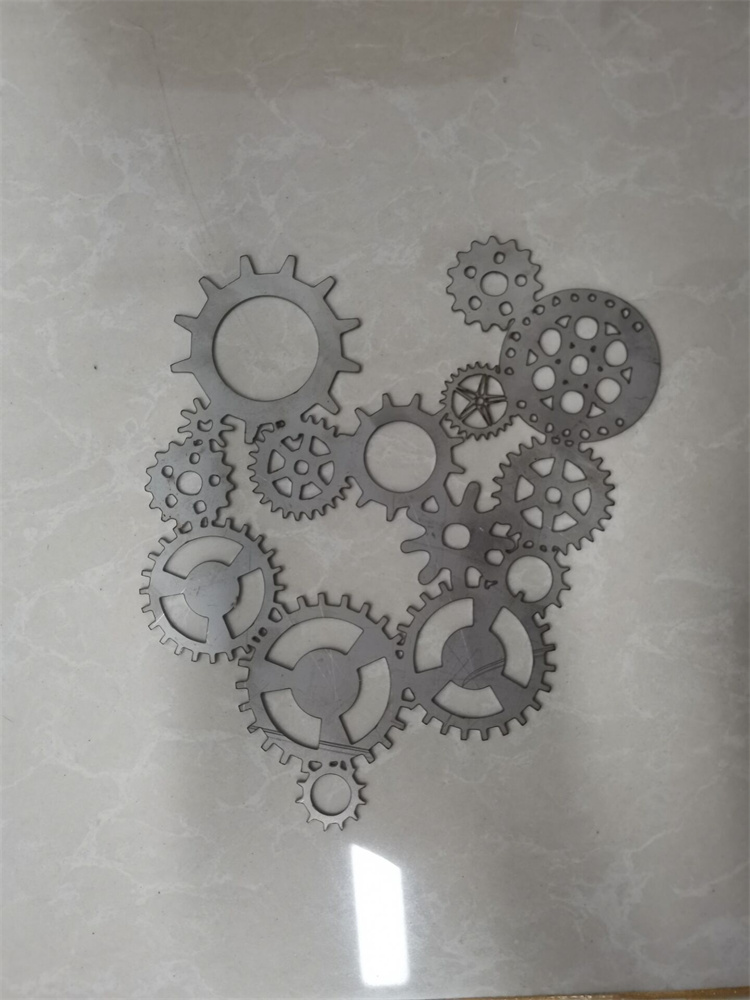

Production sample
FAQ
Q1: I know nothing about this machine, what kind of machine should I choose?
Very easy to choose. Just tell us what you want to do by using laser machine, then let us give you professional solutions and suggestions.
Q2: How can I get the sample to check you quality ?
If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
Q3: How long will it take to receive my goods after I place an order?
Generally speaking, the standard cargo transportation time is 5-15 days; Non-standard cargo transportation time 5-40 days; Depending on your geographic location and transportation method, you can also check logistics information at any time.
Q4: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 120m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-30mm
- CNC or Not: No
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Laser Source Brand: Raycus/Max/IPG
- Laser Head Brand: Raytools
- Servo Motor Brand: Fuji
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 1500 KG
- Key Selling Points: High Safety Level
- Optical Lens Brand: Wavelength
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 3 years
- Core Components: Laser source
- Mode of Operation: continuous wave
- Configuration: 3-axis
- Products handled: Sheet Metal
- Feature: Automated Loading
- Product name: Fiber Laser Metal Cutting Machine
- Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
- Laser power: 500W / 1000W / 2000W / 3000W
- Working area: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
- Laser source: MAX IPG RAYCUS
- Driving system: Yaskawa stepper motor and driver
- Working table: Sawtooth wotking table
