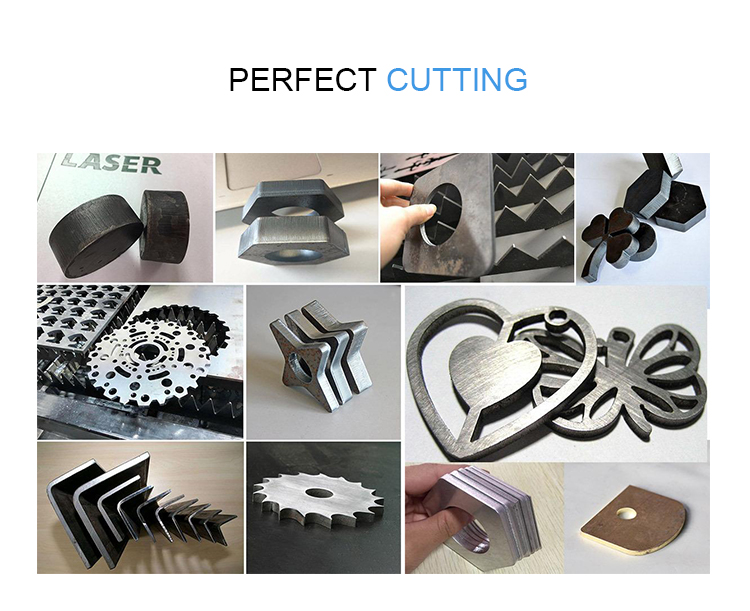

Applicable material: Stainless steel pipe, steel pipe products, aluminum alloy pipe seamless pipe cutting, round hole cutting, square hole cutting, irregular graphics cutting.The cut thickness can be up to about 15mm.
Function: Fast cutting speed, high production efficiency, long service life, simple operation, zero consumables only need power supply, labor saving, safety and environmental protection, zero pollution, cutting pipe is burr free and so on.
Advantage:
1. Fast speed, smooth and flat incision, generally no subsequent processing.
2. Small cutting heat affected zone, small plate deformation, narrow slit (0.1mm~0.3mm).
3. No mechanical stress, no cutting burr.
4. High processing accuracy and good repeatability, Does not damage the surface of the material.
5. CNC programming, can process any plan, can cut the entire board with a large format, without opening the mold, economical and time-saving.
Model | RAYMAX-H1530 |
Laser Type | Continuous Fiber Laser |
Laser Source | Raycus / Max / IPG / Nlight |
Cutting Head | Raytools / WSX / Precitec |
Cutting Thickness | 0-40mm |
Cutting Size | 1500*3000/ 2000*4000/ Customazed |
Power Supply | 380V 50 Hz |
Laser Beam | Aluminum Cast |
Guide Rail | HIWIN |
Rack | T-WIN |
Water Chiller | Hanli |
Machine Bed | Tube Welding |
Detailed Production

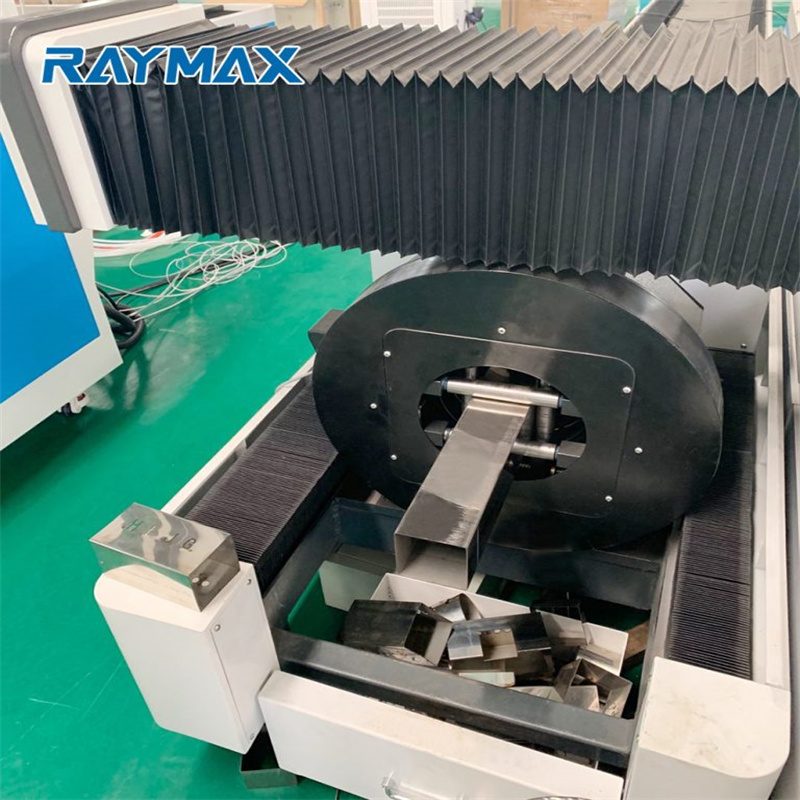

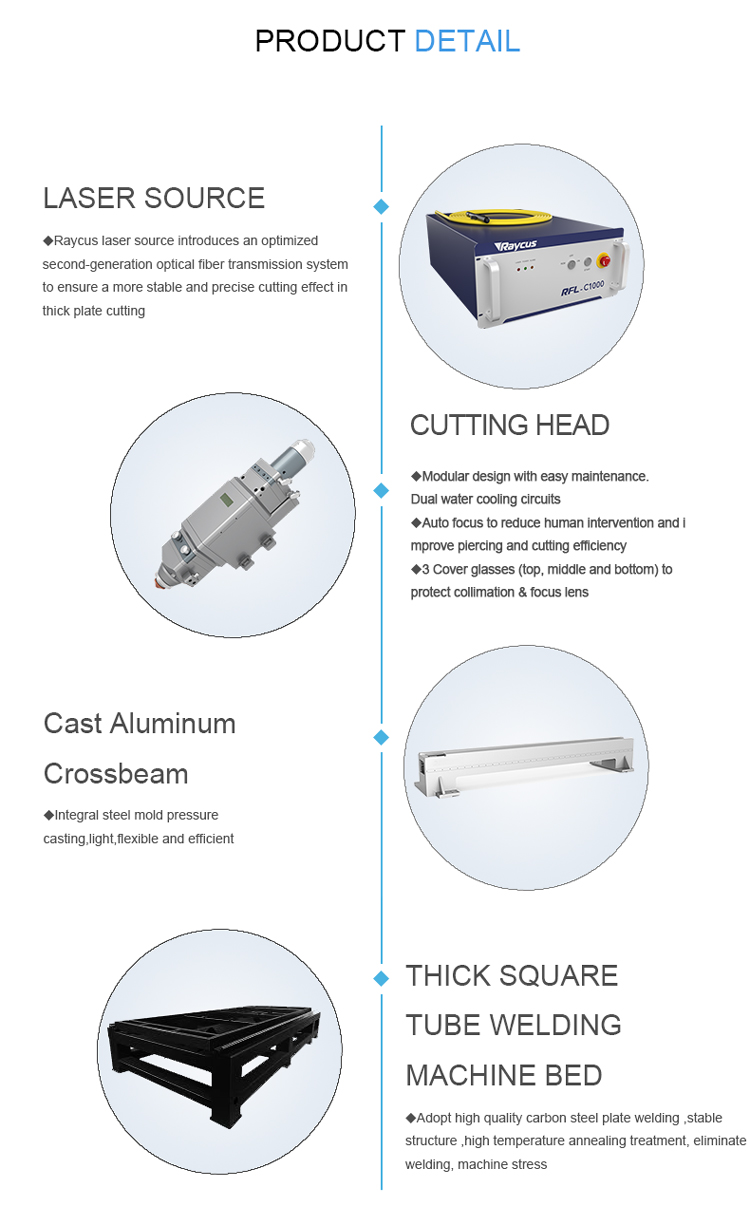

2kw 4000w 2x4 Meters Cnc Fiber Laser Cutting Machine adopts imported rail and heavy racks from Taiwan, Japanese YASKAWA servo motor and driver and American laser mech laser head. All this parts match well with each other, machine's stability is great. Our this fiber not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customer ' s needs.
All we service :
1. We would install the machine in field and guide the customers to use the machine and control system;
2. We would send customers all the vidoes toturials to show the operation steps . And we would leave our connection, like whatsapp, wechat, microsoftware team, etc . to make customers can keep touching with us . We support videos aftersale if it is over warranty or not.
3. We support parts to replace ,such as laser source ,protective lenses .
4. We would provide tech and guidance on free during the warranty.
FAQ
Q: Can I get some discount if I order more?
A: Yes, the more you order, the more you save.please chat with us to get more details.
Q: How to choose suitable machine and suitable power?
A: Please tell me your
1. the materials you need to cut
2) the size of your materials
3) the max thickness of your materials
4) the most commonly cut thickness
Q: What is your terms of payment?
A: 50% T/T in advance, the balance be collected before shipment.
Q: How long is your delivery time?
A: When the order is confirmed, 25 working days for an order .
Q: If there is a problem with the machine, what about the after-sales service?
A: The warranty of the machine is 2 years(main spare parts, except for the consumable parts such as ceramic ring, protective lens,nozzle etc. Except the human damage, we are responsible for maintanance during the warranty period.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 0-40000mm/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0-10mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Cypcut
- Place of Origin: China
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: FUJI
- Guiderail Brand: HIWIN
- Control System Brand: Friendess
- Weight (KG): 4180 KG
- Key Selling Points: High-accuracy
- Optical Lens Brand: Wavelength
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Energy & Mining, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: laser source
- Mode of Operation: continuous wave
- Configuration: 3-axis
- Products handled: Sheet Metal
- Feature: Programmable
- Keyword: Fiber Laser Cutting Machine 4000W Fiber Laser 2KW 2x4 Meters
- Key words: CNC Laser Fiber Machine Cutting
- Laser power: 500W / 1000W / 2000W / 3000W/4000W
- Laser source: Raycus IPG NLIGHT Laser Source
- Control system: FScut 3000
- Max cutting speed: 60m/min
- Cooling system: Water Chiller Cooling System
- Positioning Accuracy: 0.02mm
- Cutting head: RAY TOOLS
- Motor: Japan Fuji Motors
