Products Description
The laser cutting machine focuses the laser emitted from the laser into a laser beam with high power density through the optical path system. The laser beam irradiates the surface of the workpiece to make the workpiece reach the melting point or boiling point. At the same time, the high-pressure gas coaxial with the beam blows away the molten or gasified metal.
The mechanical part of the laser cutter head has no contact with the workpiece and will not scratch the workpiece surface during operation; The laser cutting speed is fast, the incision is smooth and flat, and there is generally no need for subsequent processing; Small cutting heat affected zone, small plate deformation and narrow cutting seam (0.1mm ~ 0.3mm);
The notch has no mechanical stress and no shear burr; High machining precision, good repeatability and no damage to the material surface; NC programming, can process any plan, can cut the whole board with large format, no need to open the mold, economical and time-saving.
Specification
| Model | CY-1530E | Unit |
| Working area | 3000x1500 | mm |
| X-axis travel | 1550 | mm |
| Y-axis travel | 3050 | mm |
| Z-axis travel | 120 | mm |
| X,Y positioning accuracy | 0.05/1000mm | mm |
| X,Y repeat positioning accuracy | 0.03/1000mm | mm |
| Acceleration | 1G | m/s |
| Max running speed | 80 | m/min |
| Table max load | 900 | Kg |

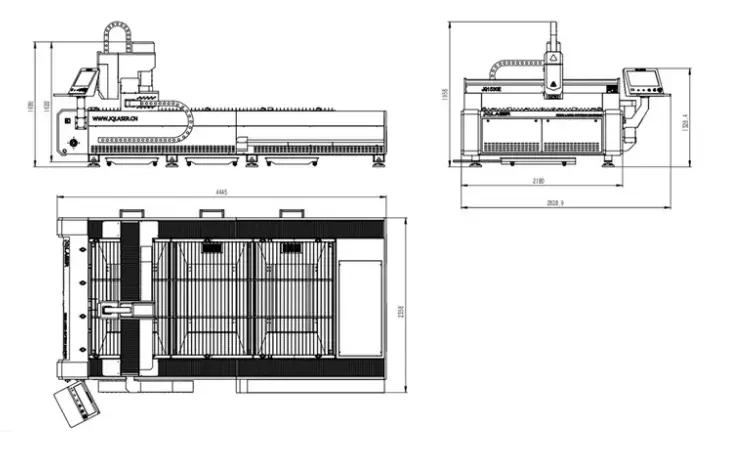

| Machine size(LxWxH) | 4700/2200/1600 | mm |
| Laser power | 1000 | w |
| Control system | Fscut | |
| Whole machine power | Kw | |
| Machine voltage need | 380v/50Hz |
FAQ
Q. What are your normal lead times?
A. Our company typical lead times range from 3-4weeks after receipt of order.
Q. What are the terms of payments you offer?
A. We accept payment of T/T, L/C, and Western Union, cash, O/A etc.
Q. What kind of package do you offer?
A. Normally in plywood case, to make sure all goods in good condition.
Q. What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.
Q. Do you have CE certification
A. Yes, we have CE certification, machine quality is one year guaranteed.
Q. How to control the quality of the products?
A. We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service.
Details
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 3000x1500
- Cutting Speed: 80m/min
- Graphic Format Supported: AI, PLT, DXF
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: Fscut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Control System Brand: FANUC
- Weight (KG): 4500 KG
- Key Selling Points: Energy saving
- Optical Lens Brand: II-VI
- Warranty: 1 Year
- Applicable Industries: Manufacturing Plant, Machinery Repair Shops
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Gearbox, PLC
- Working area: 3000x1500
- X-axis travel: 1550
- Y-axis travel: 3050
- Z-axis travel: 120
- X,Y positioning accuracy: 0.05/1000mm
- X,Y repeat positioning accuracy: 0.03/1000mm
- Acceleration: 1G
- Max running speed: 80
- Table max load: 900
- Machine size(LxWxH): 4700/2200/1600
- Certification: ce
- After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
